LACE-UP Floor Seat

store-ready
16 weeks
Spring 2023

BRIEF

design and construct a soft-goods product for a gift shop frequented by creative college students

EXPERIMENTATION

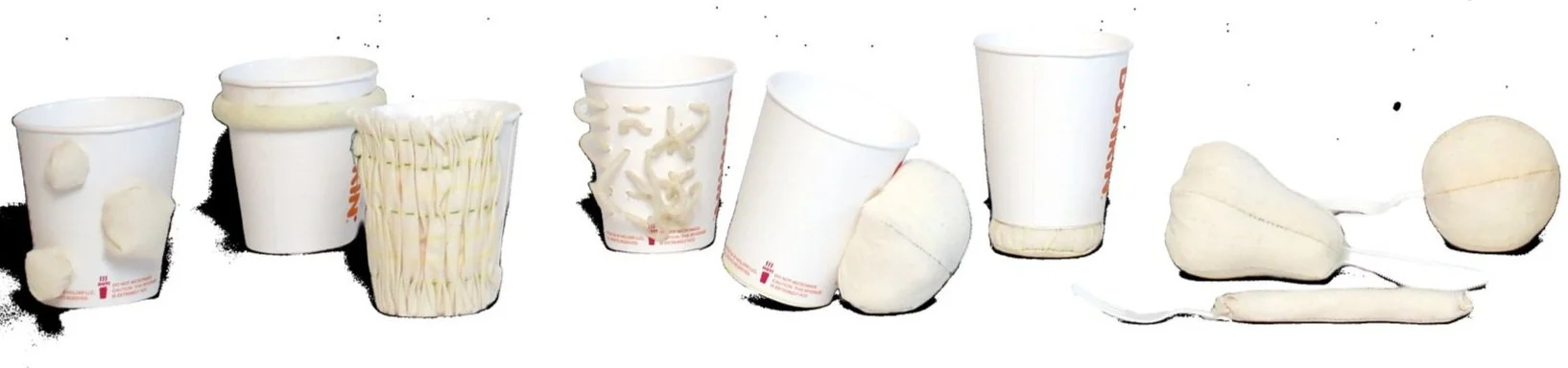

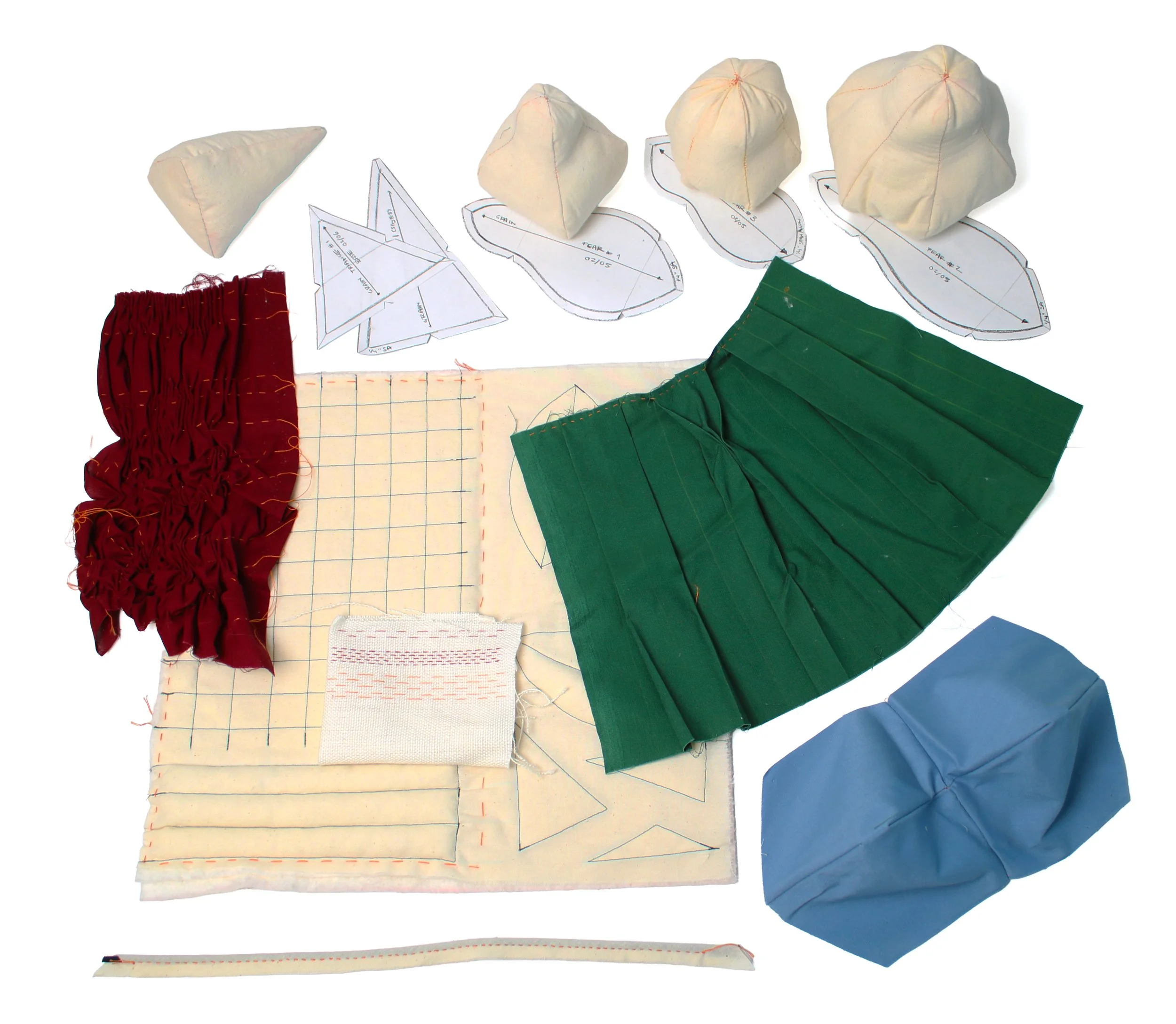

We began by learning various types of fabric manipulation techniques, including hand stitching, shirring, pleating, quilting, couching, and 3D pattern-making. I explored how these techniques might be of use in a functional product.

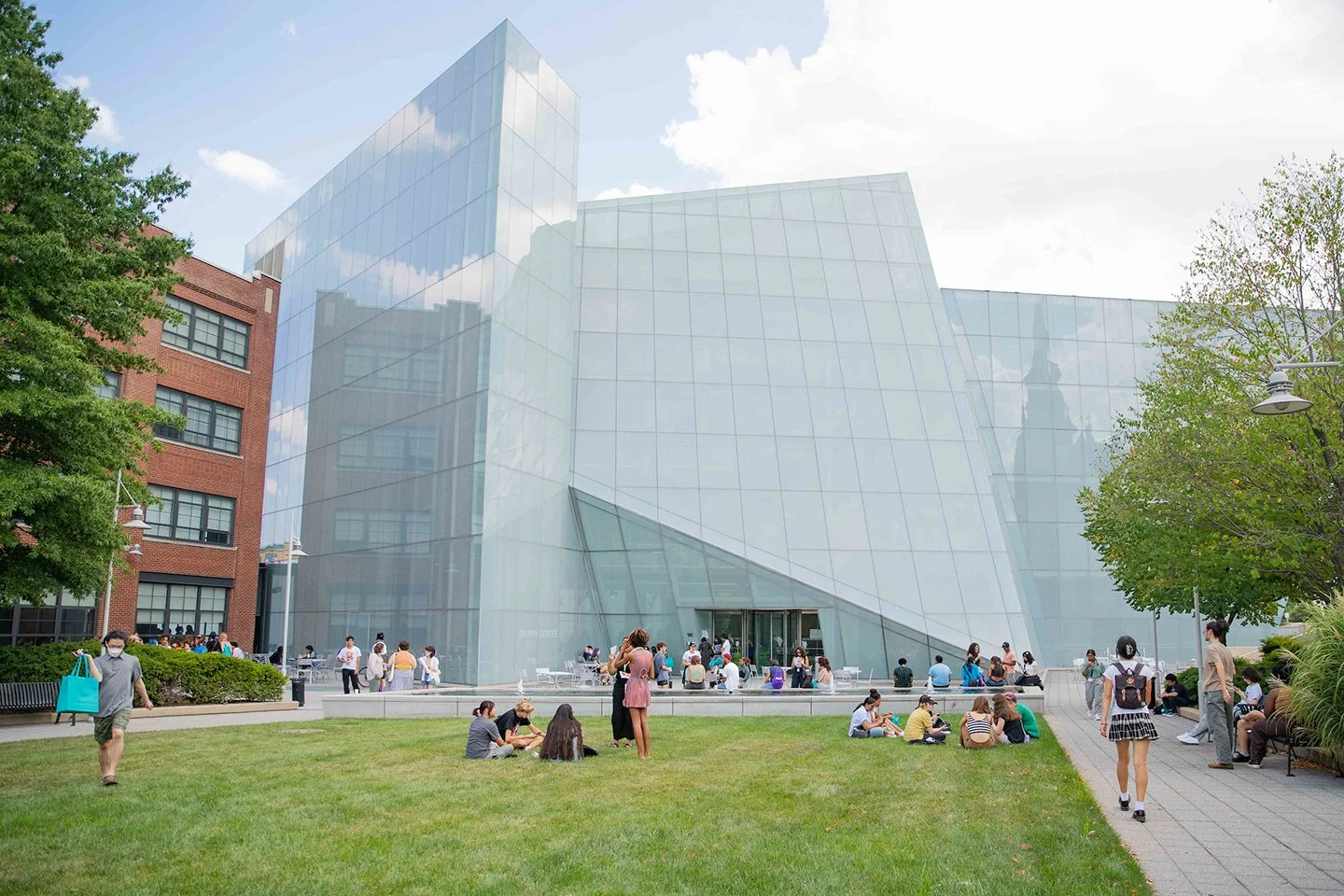

CAMPUS GREEN SPACES

how might textile techniques be used to create a portable seating solution that allows the busy, creative college student to sit comfortably on the nearest patch of green to both work and play?

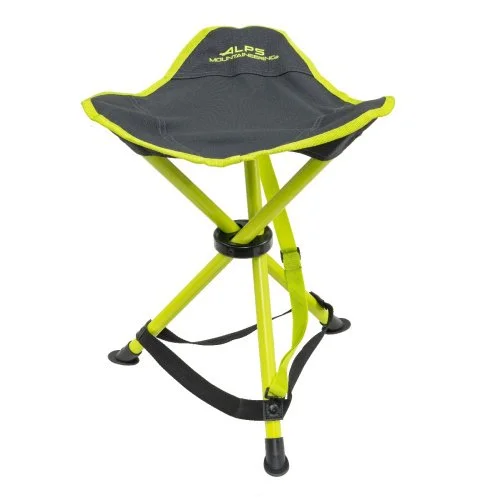

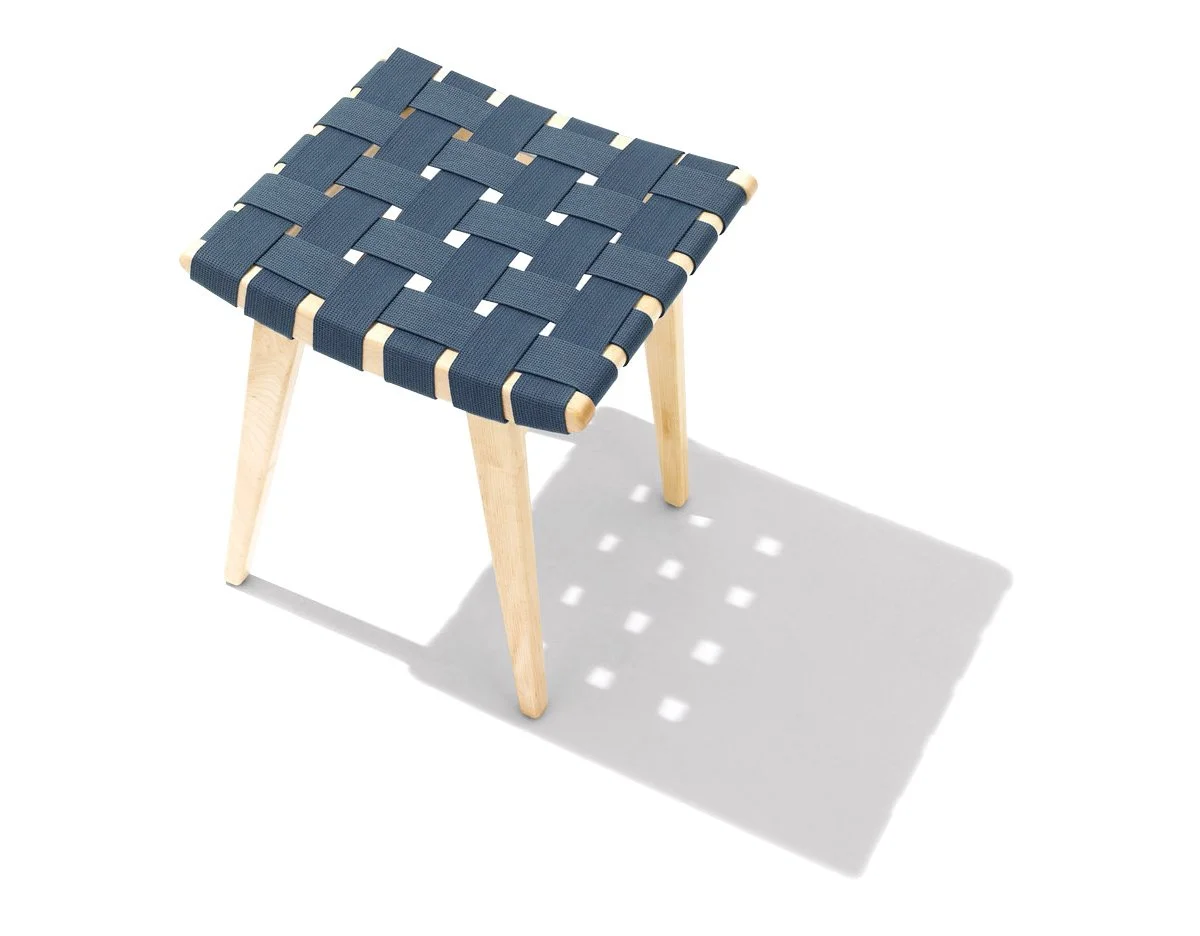

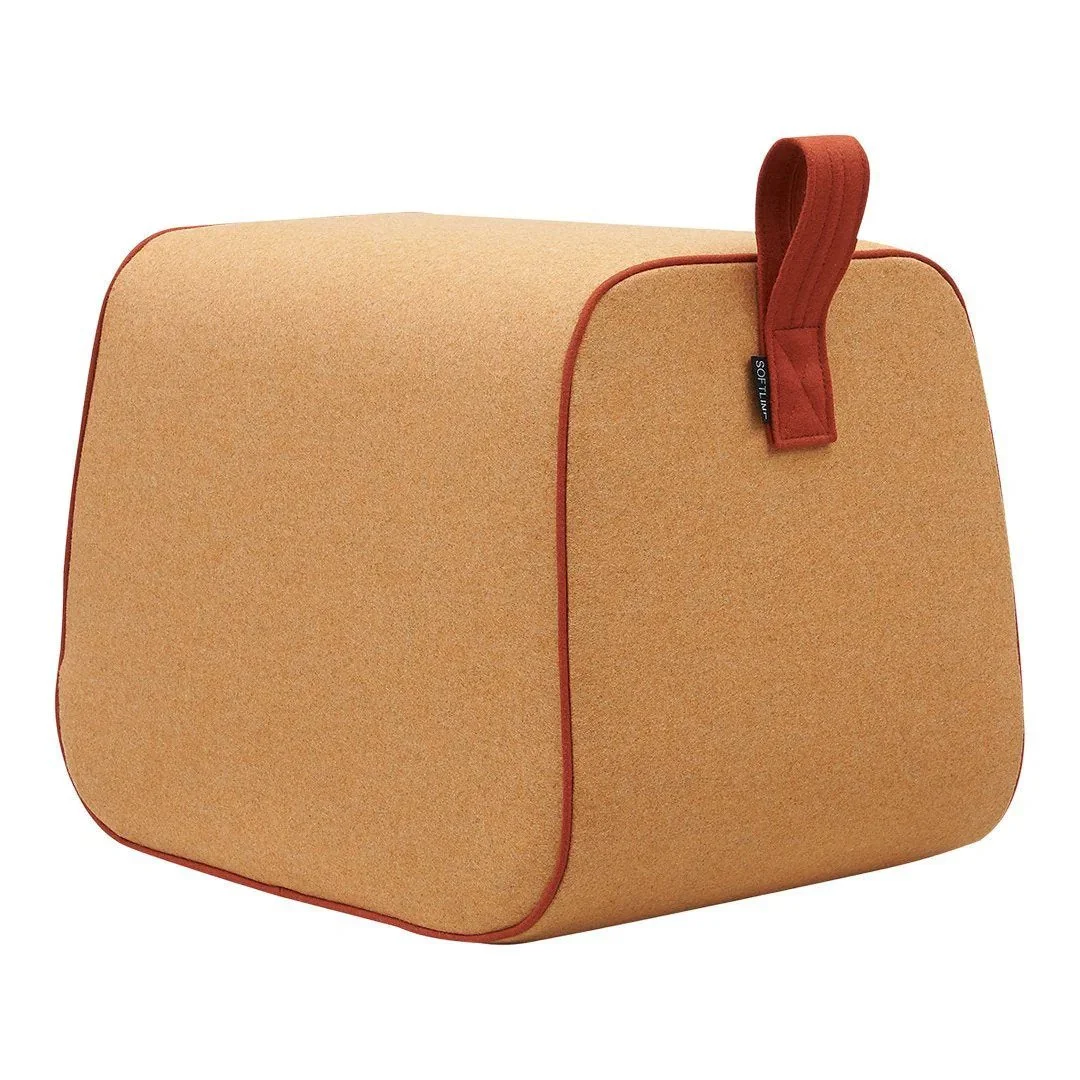

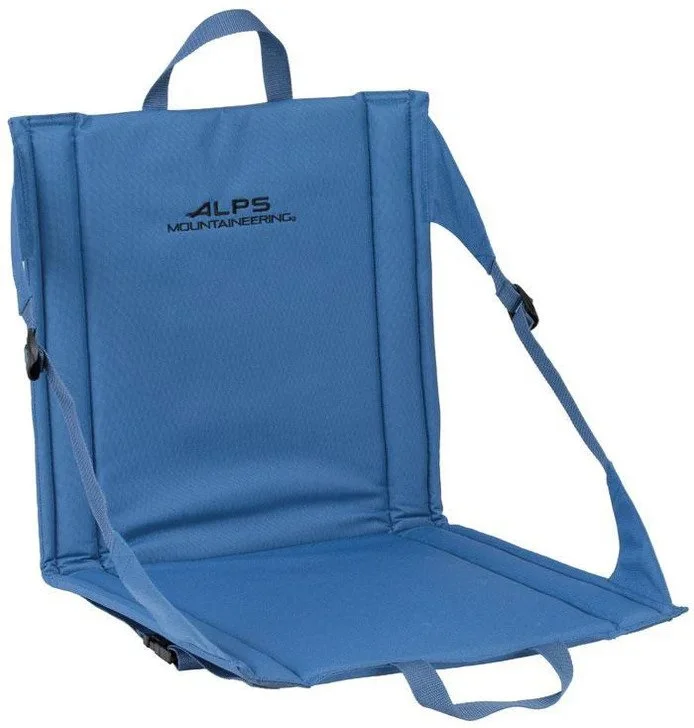

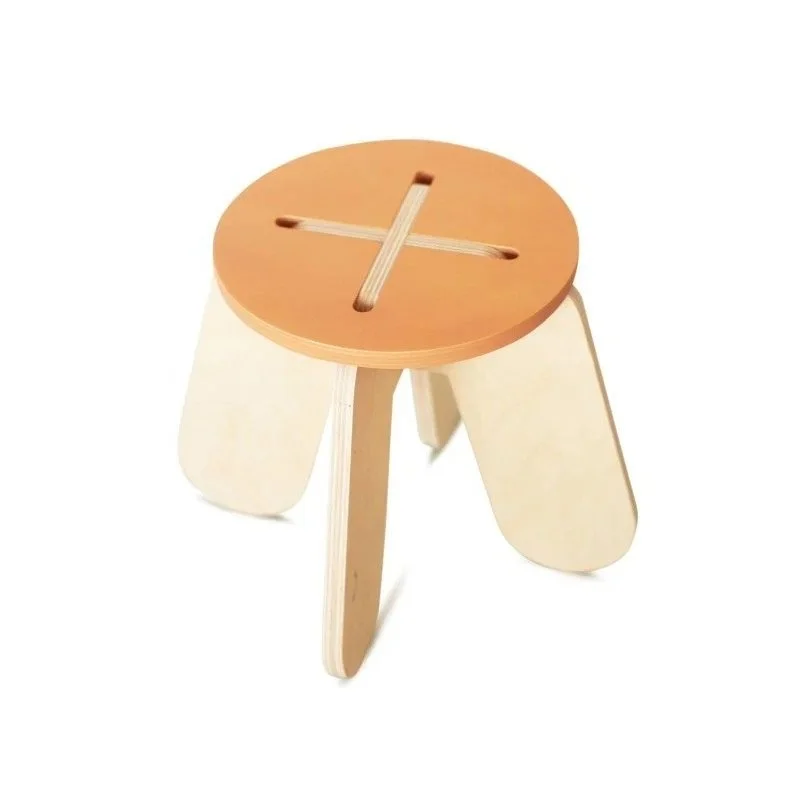

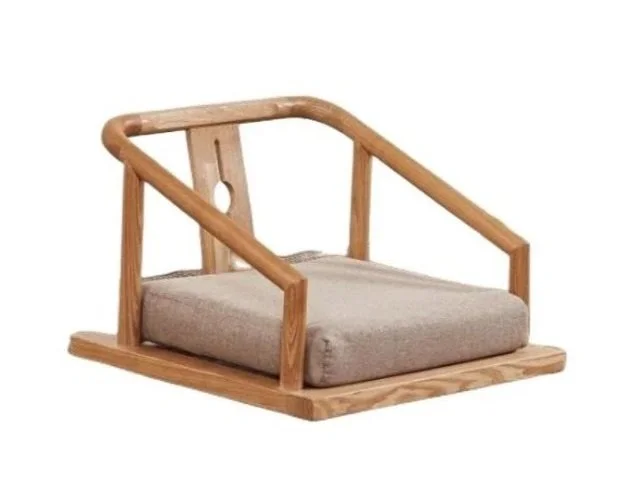

I evaluated different small-scale seating currently on the market based on various criteria. I sought to combine the portability and weather- resistance of camping gear with the structure, comfort, and elevated look of home furnishings.

PRODUCT LANDSCAPE EVALUATION

outdoor
use

portable,
compact

structure,
support

aesthetic
design

comfort,
cusion

textile
craft

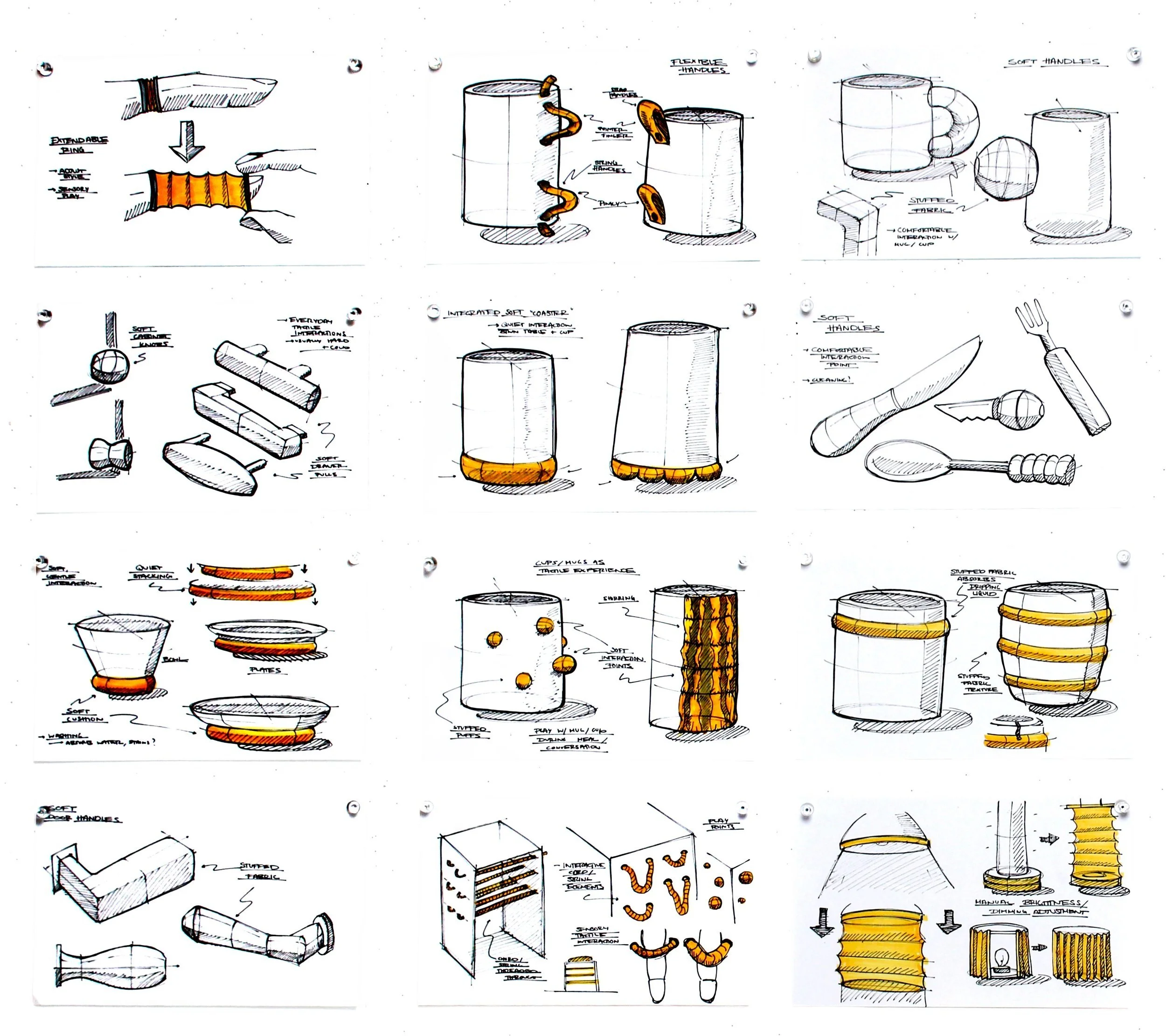

IDEATION

-

IDEATION -

MODELING

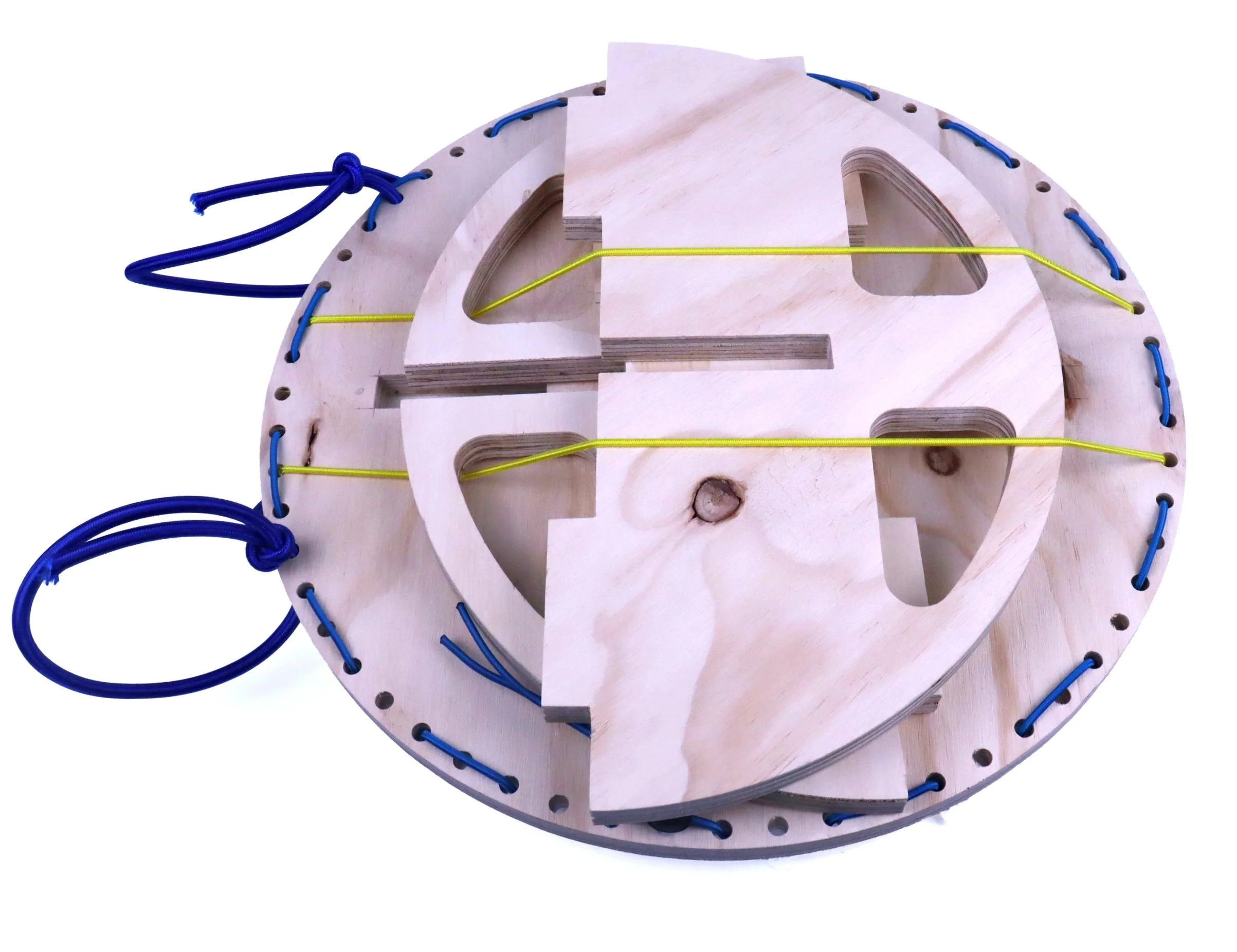

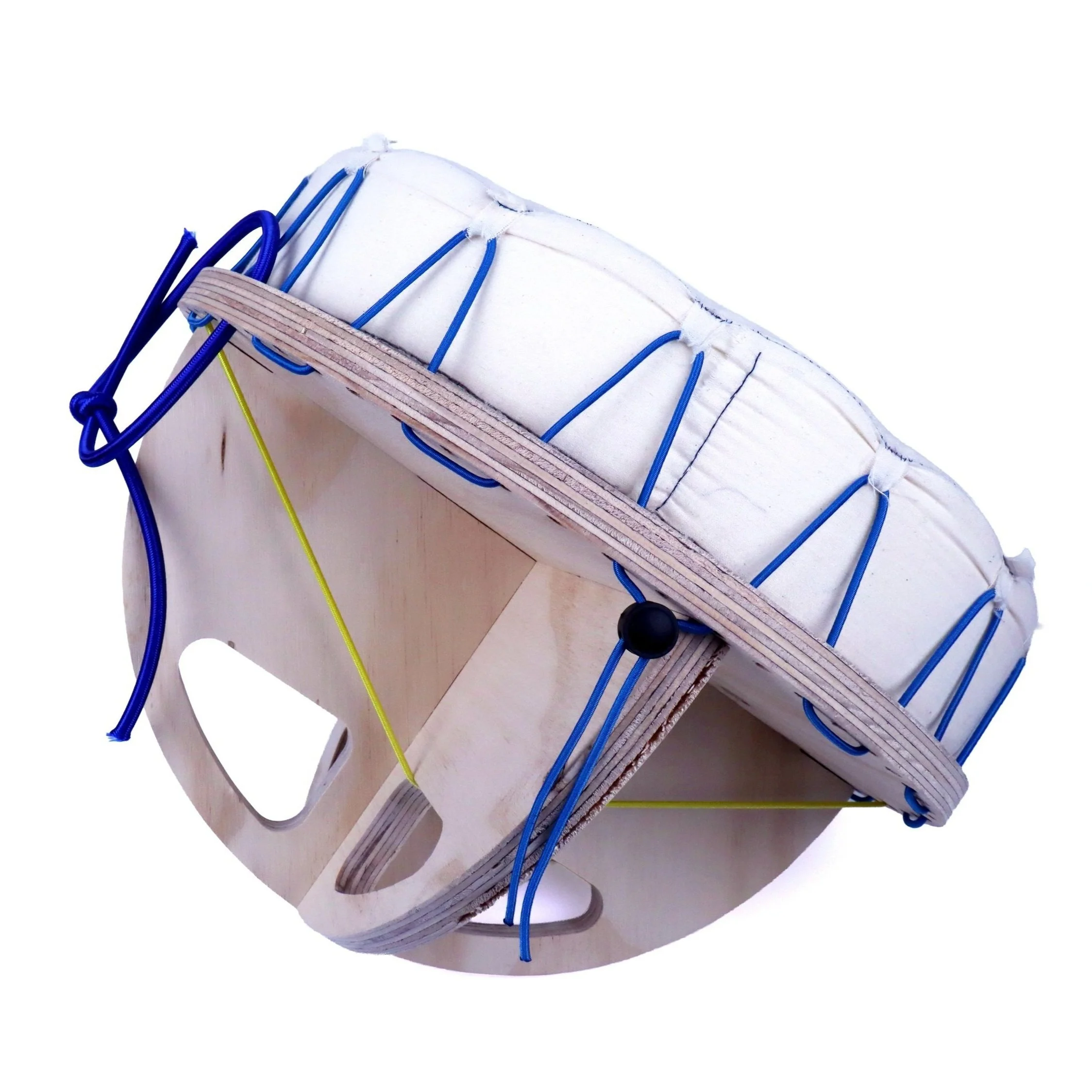

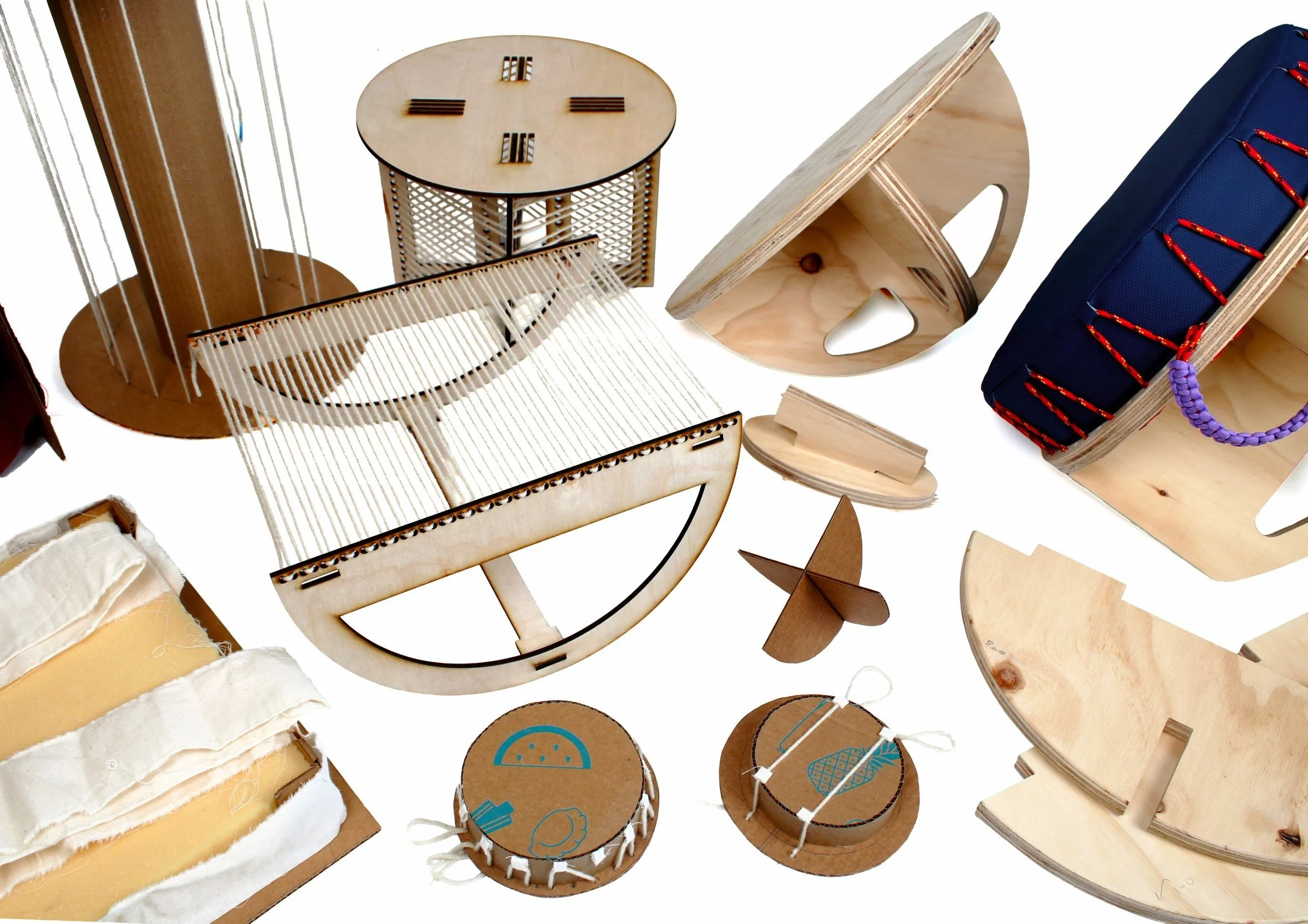

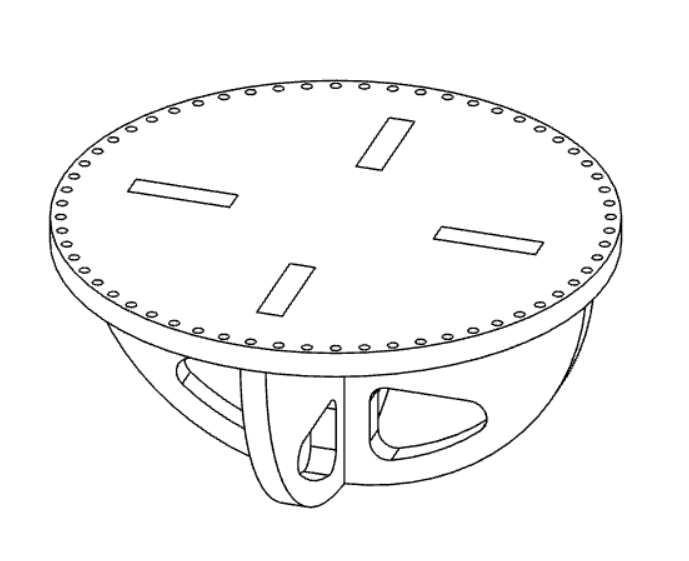

I began rough sketch models with cardboard, string, and muslin, moving to laser-cut basswood, and eventually scaling up to CNC-cut plywood prototypes. My first testable concept was for a small rocking chair with slotting legs that could be stored flat. I experimented with different cords and cushion attachment methods.

TESTING

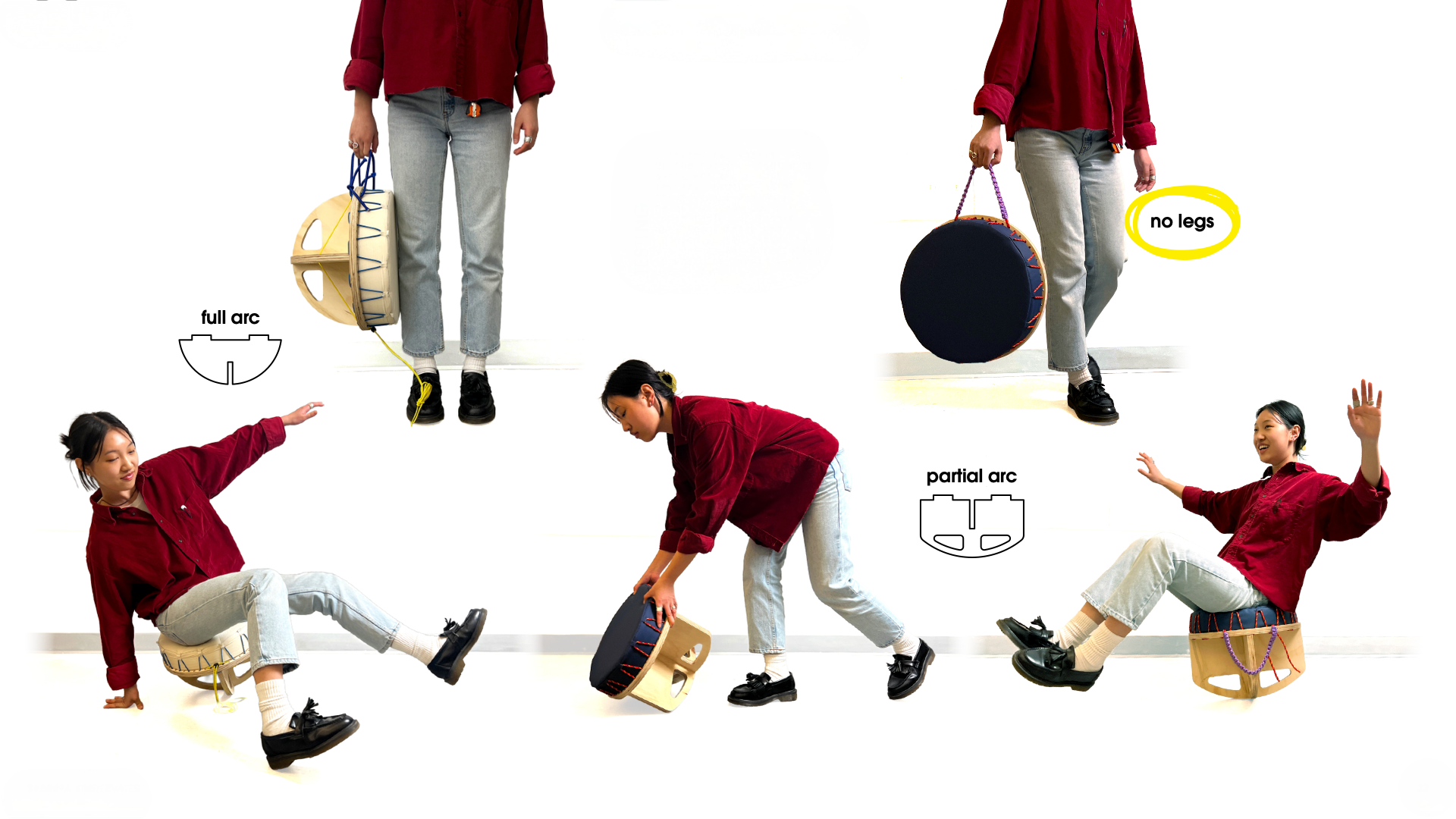

I tested two variations of the rocking stool with different arcs. Most testers responded that the movement and short height was fun but not comfortable for longer use. The surface and cushion seated closer to the ground was more suited to what they would want to use it for.

PROTOTYPING

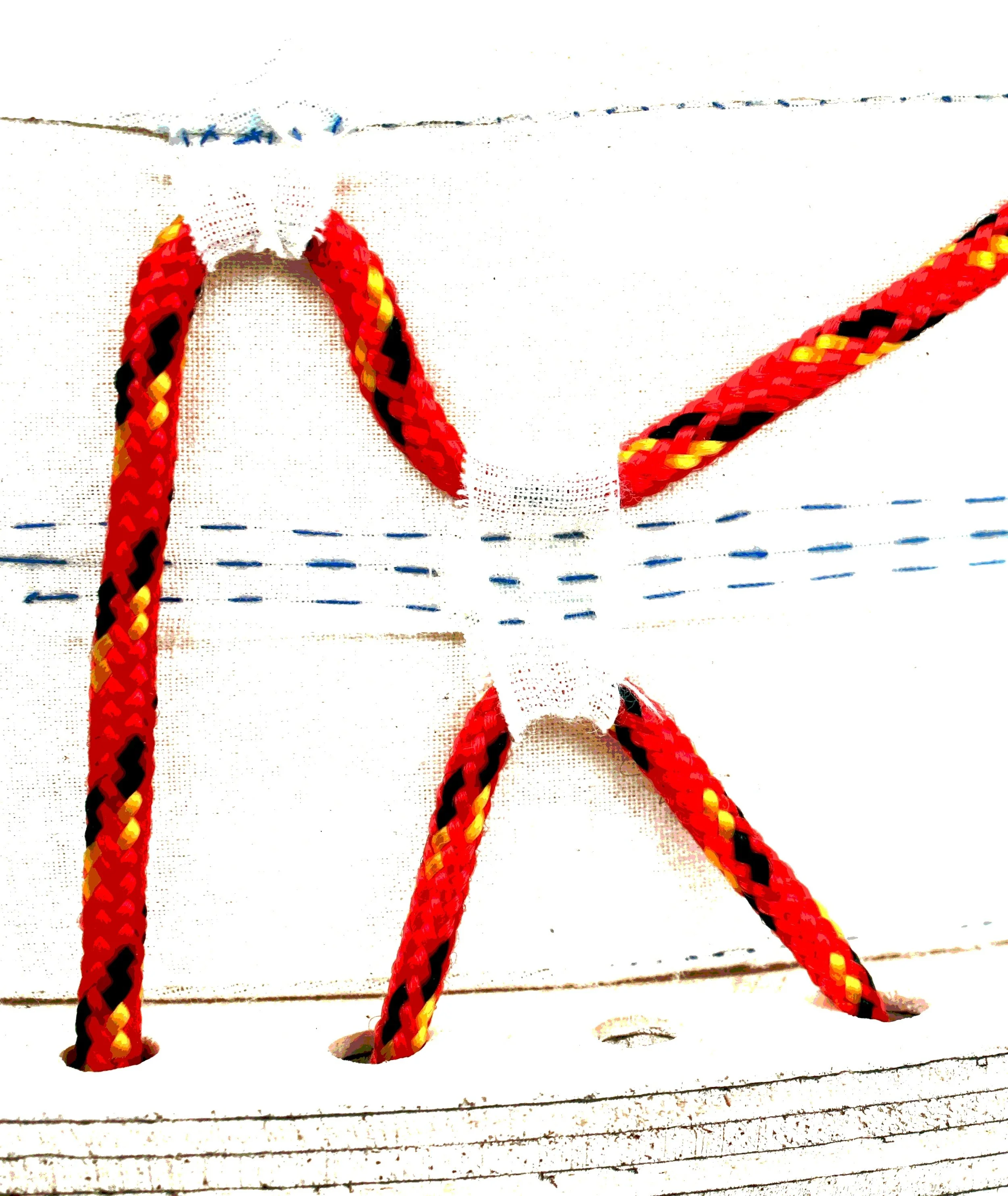

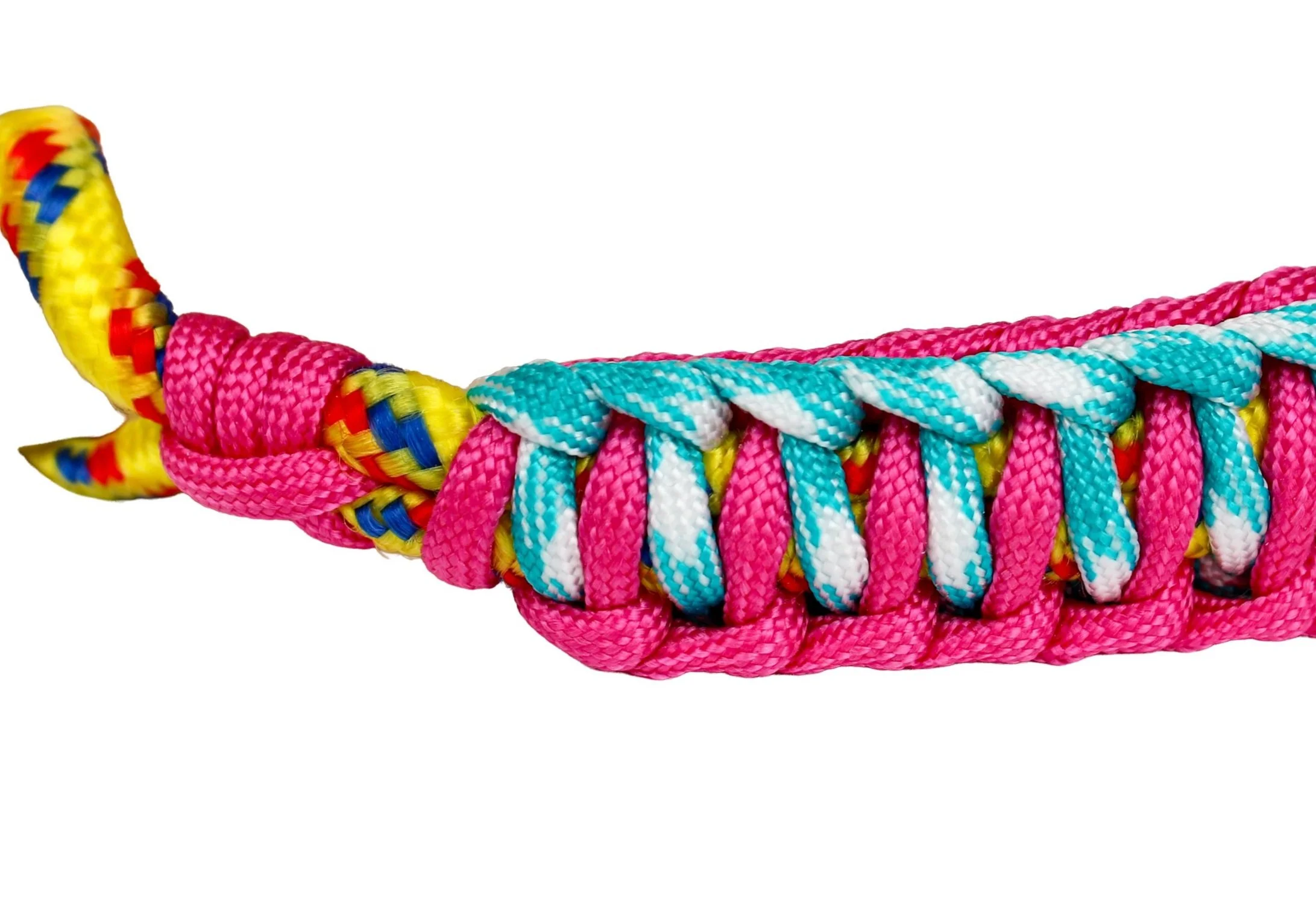

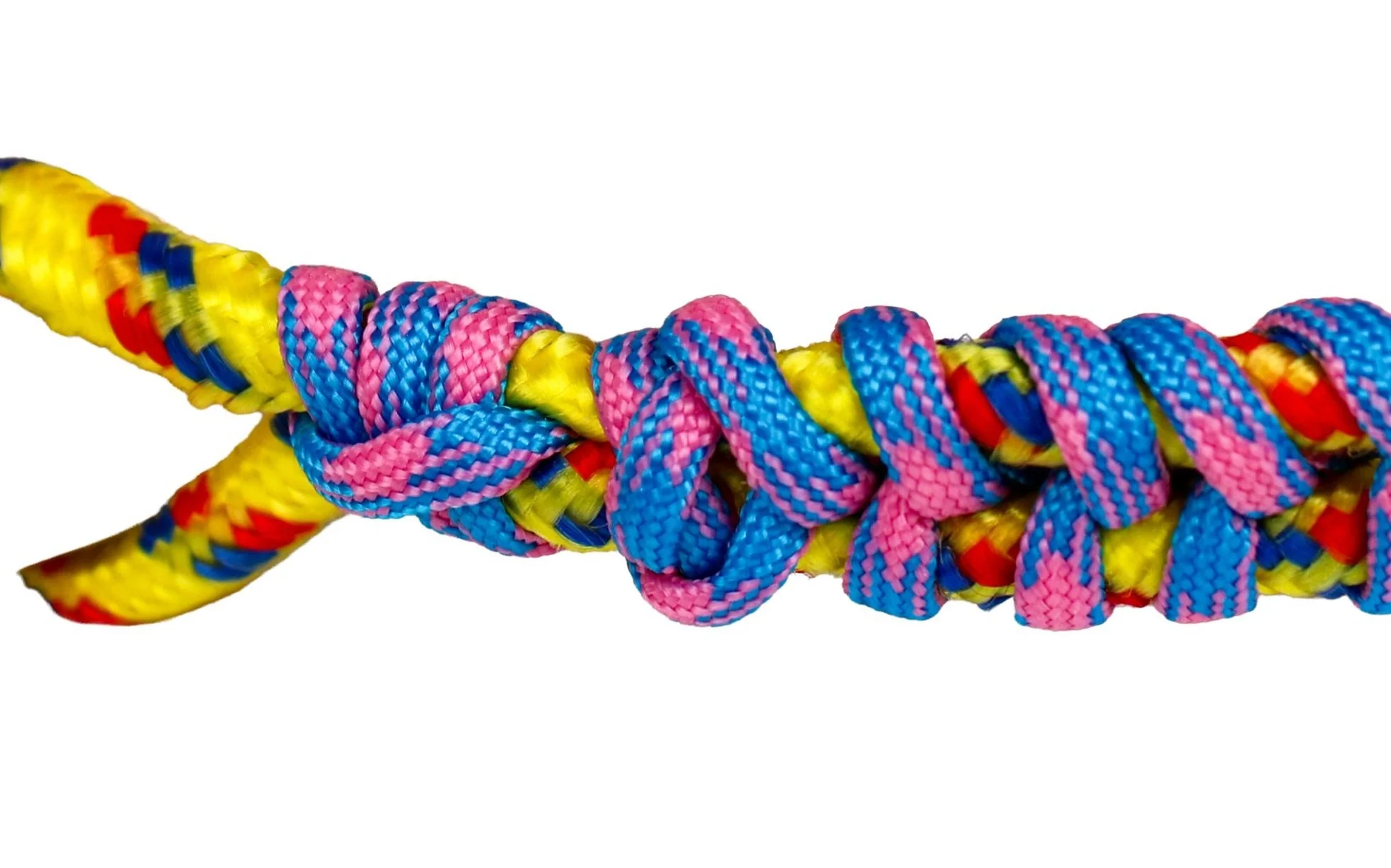

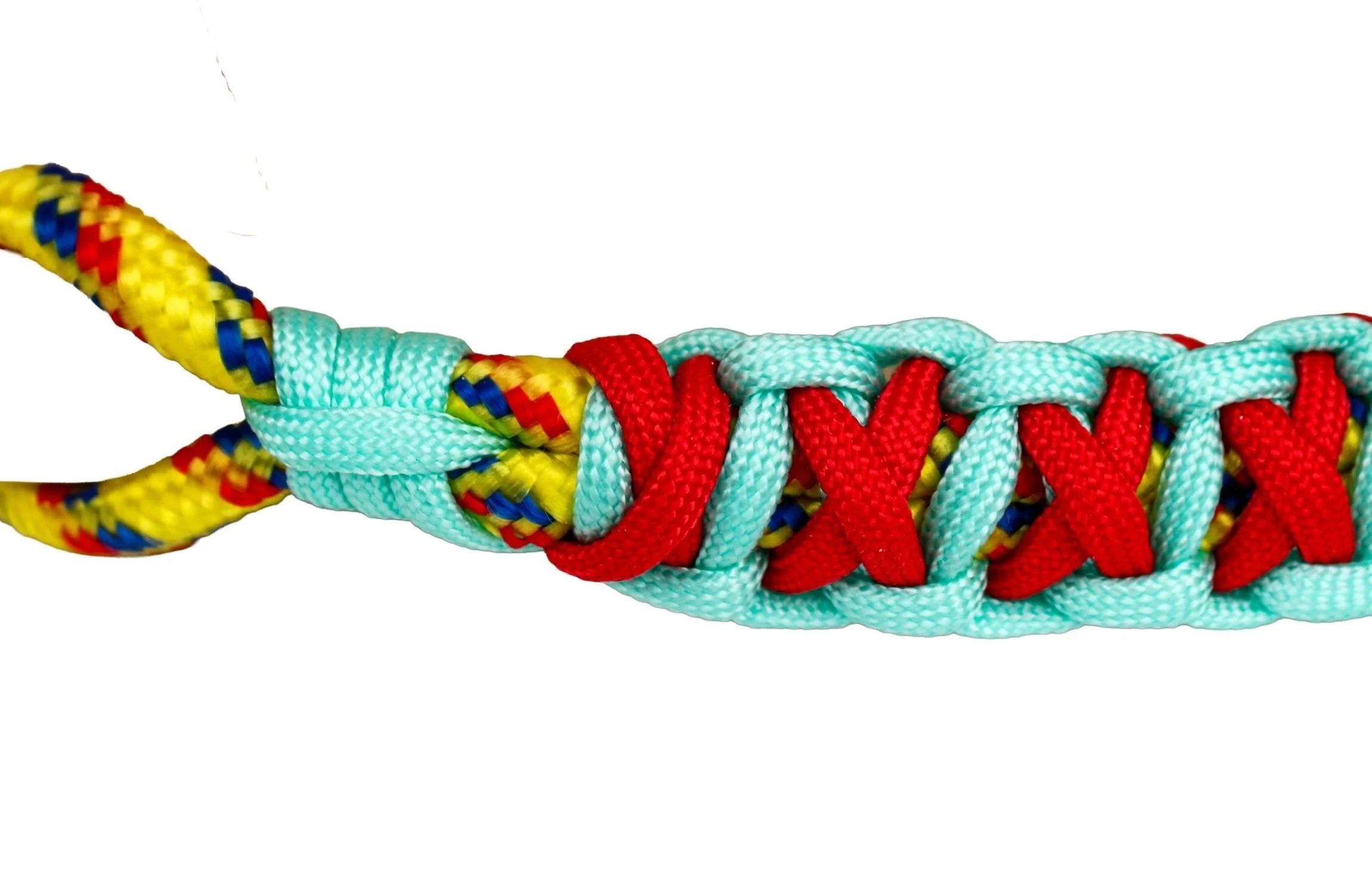

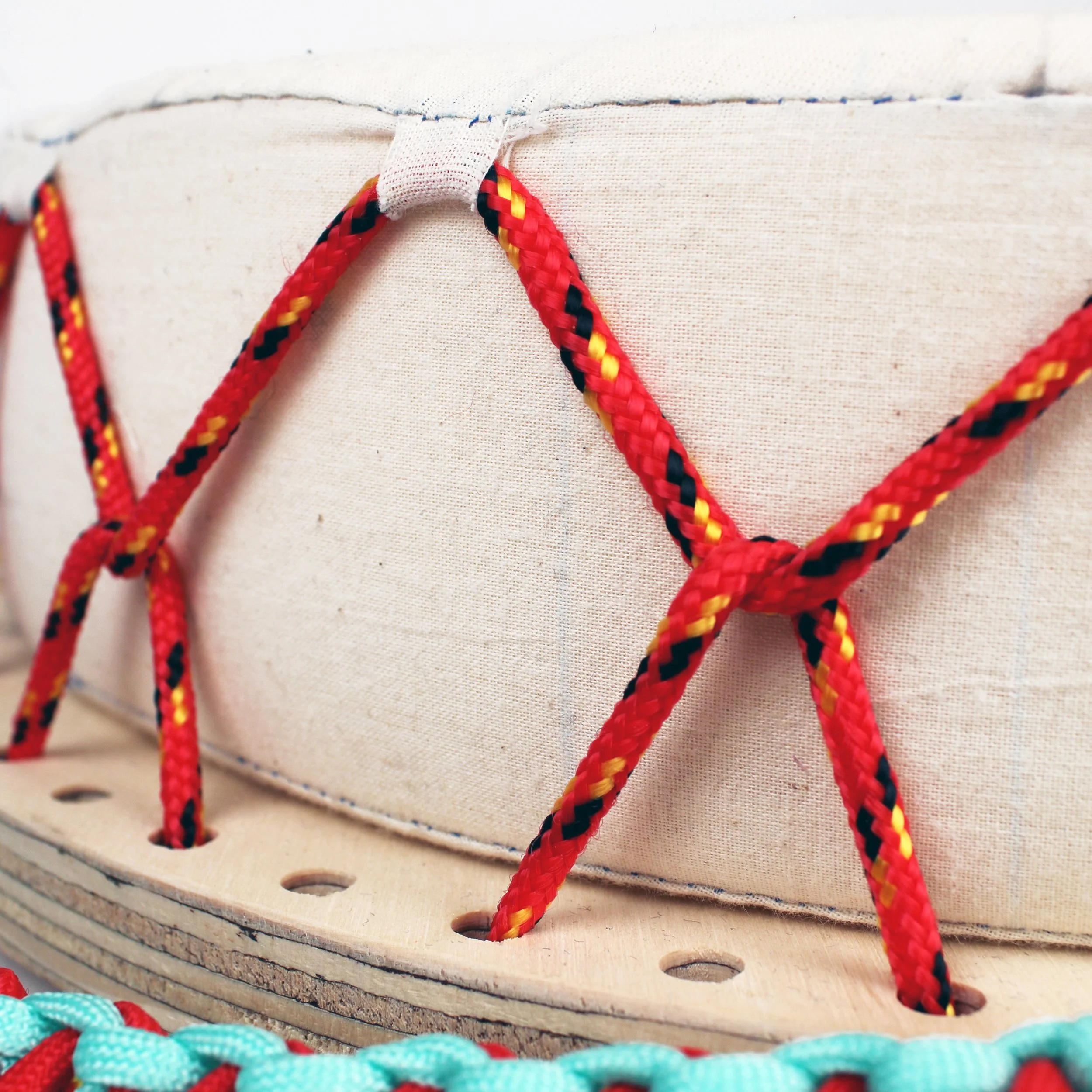

I tested different rope braided handles as well as tab and cord systems for attaching the cushion to the wood.

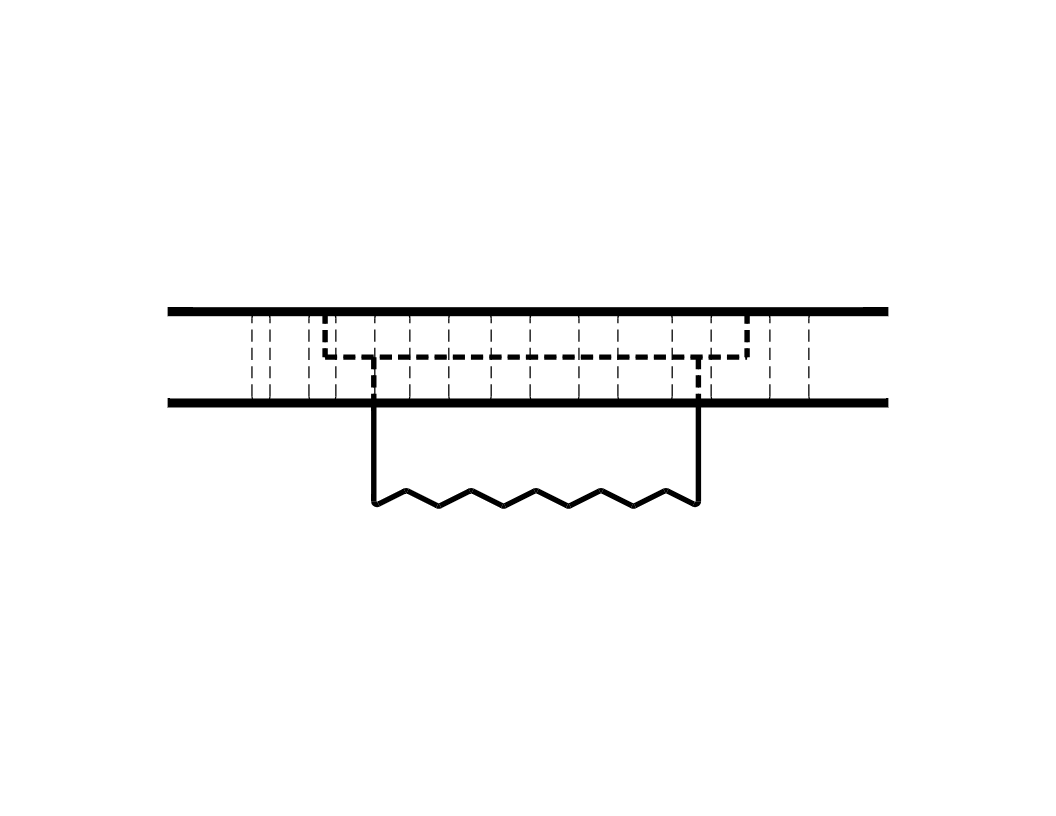

I added rubber feet to the bottom of the seating surface to keep the wood from getting wet and dirty outside. I 3D printed different versions that replicate shoe soles. I created silicone molds, and cast the feet using a urethane rubber.

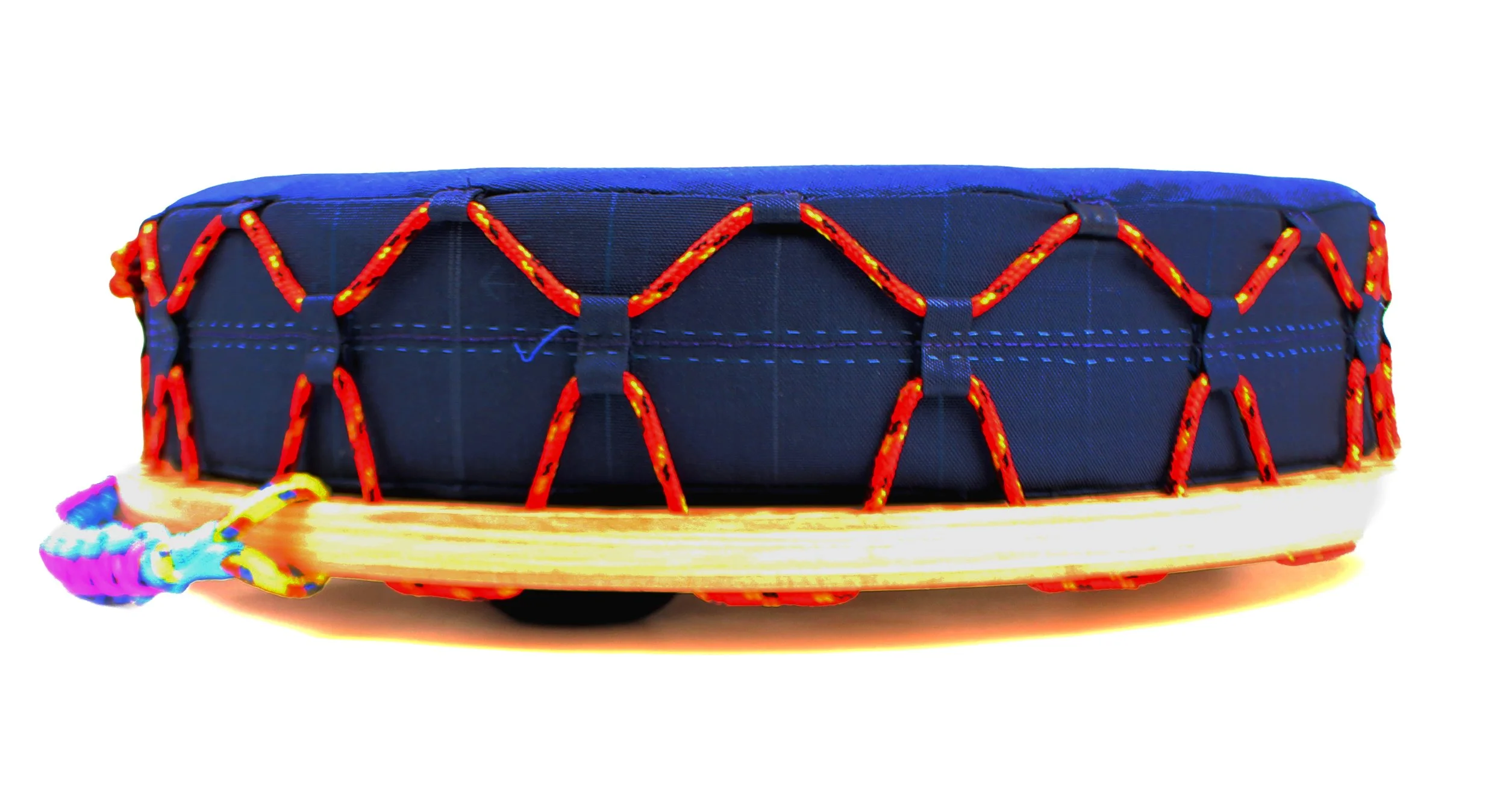

THE LACE-UP FLOOR SEAT

Go sit outside!

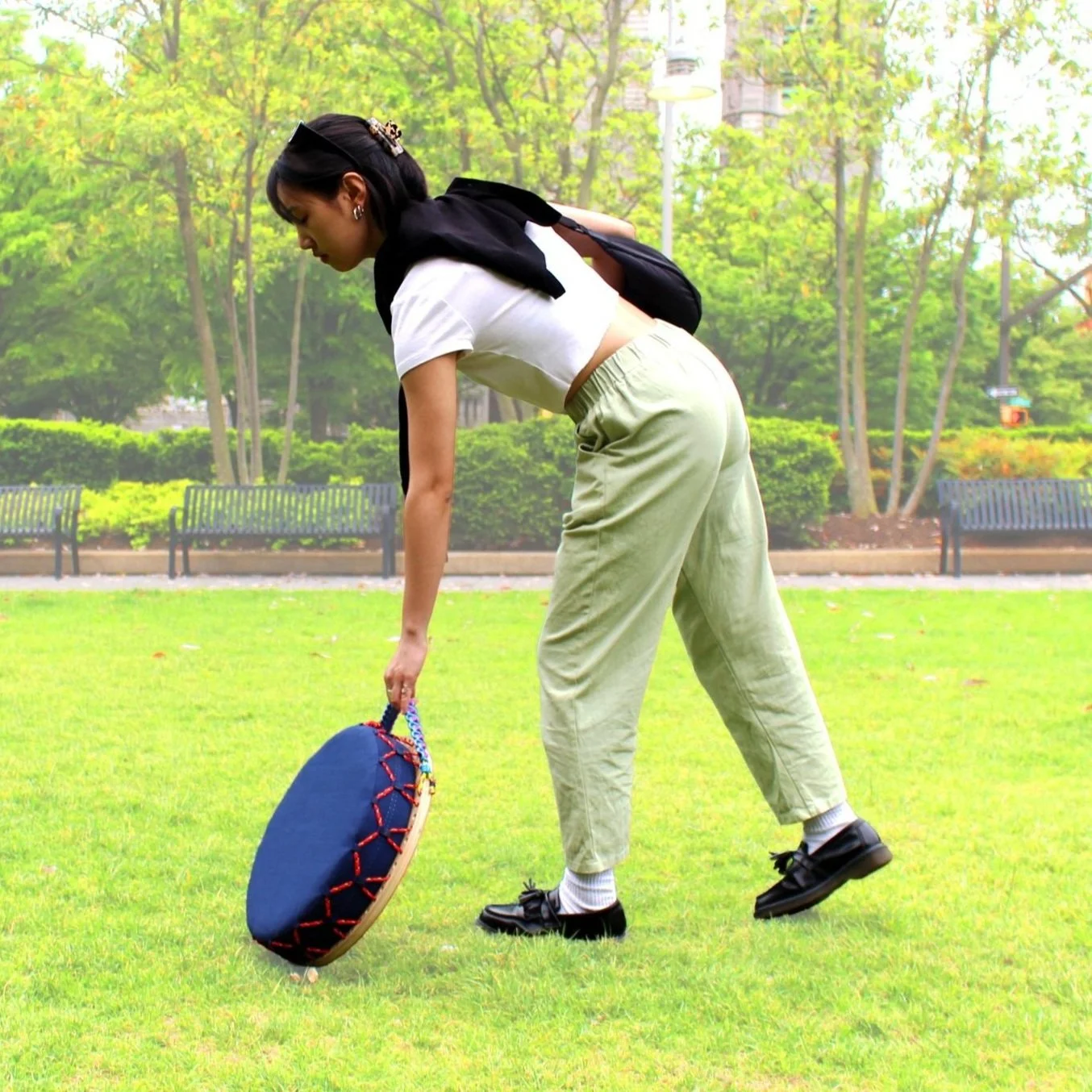

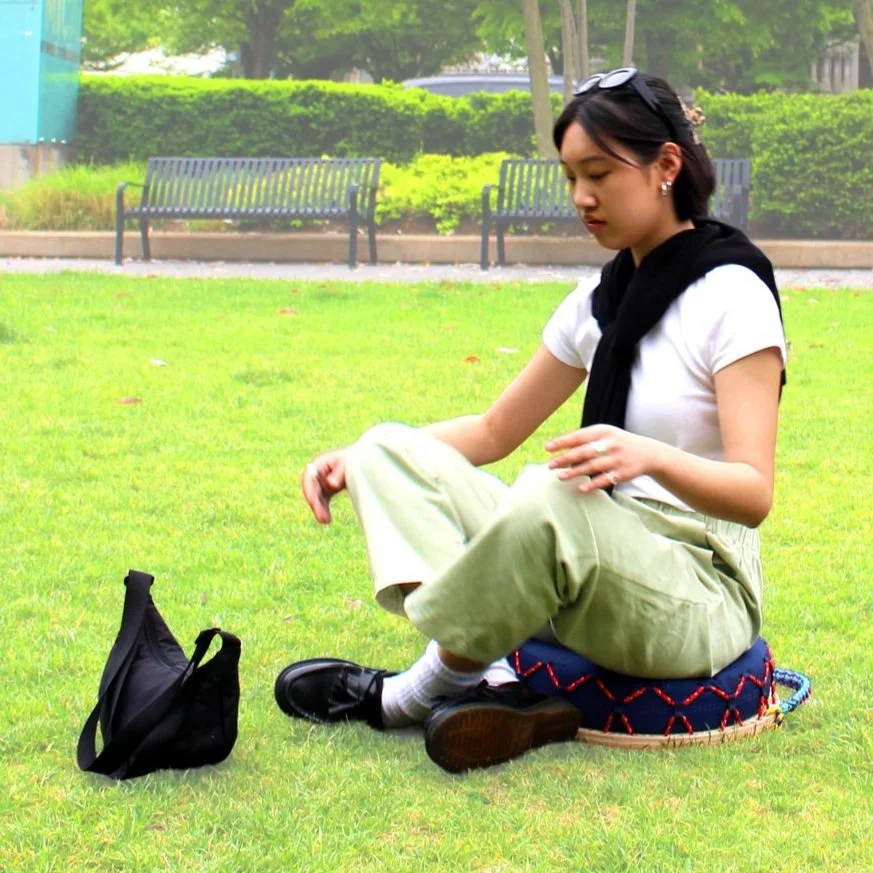

Take this portable seat with you to your nearby park or plaza and sit comfortably while touching grass, breathing fresh air, and enjoying nice weather.

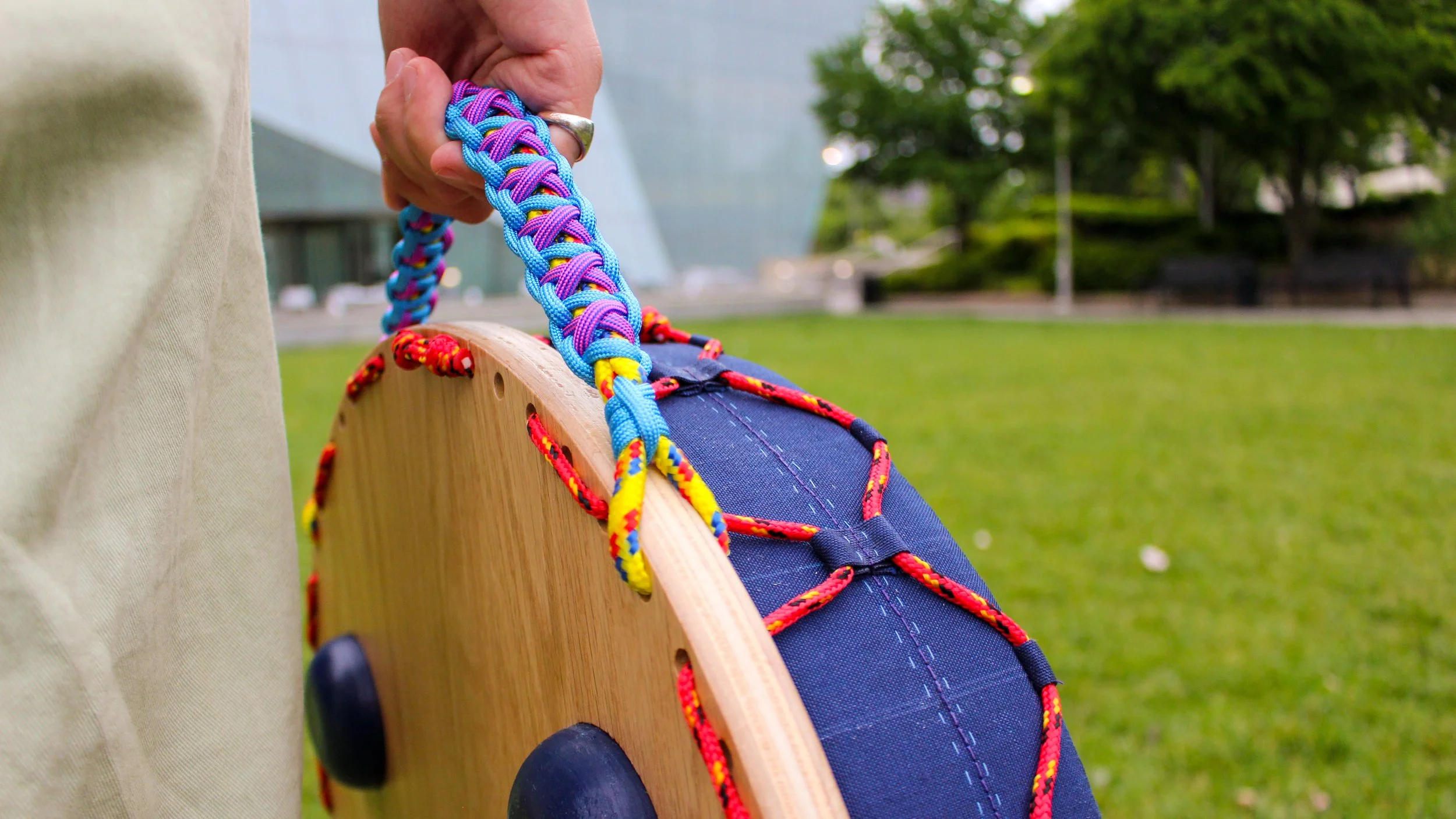

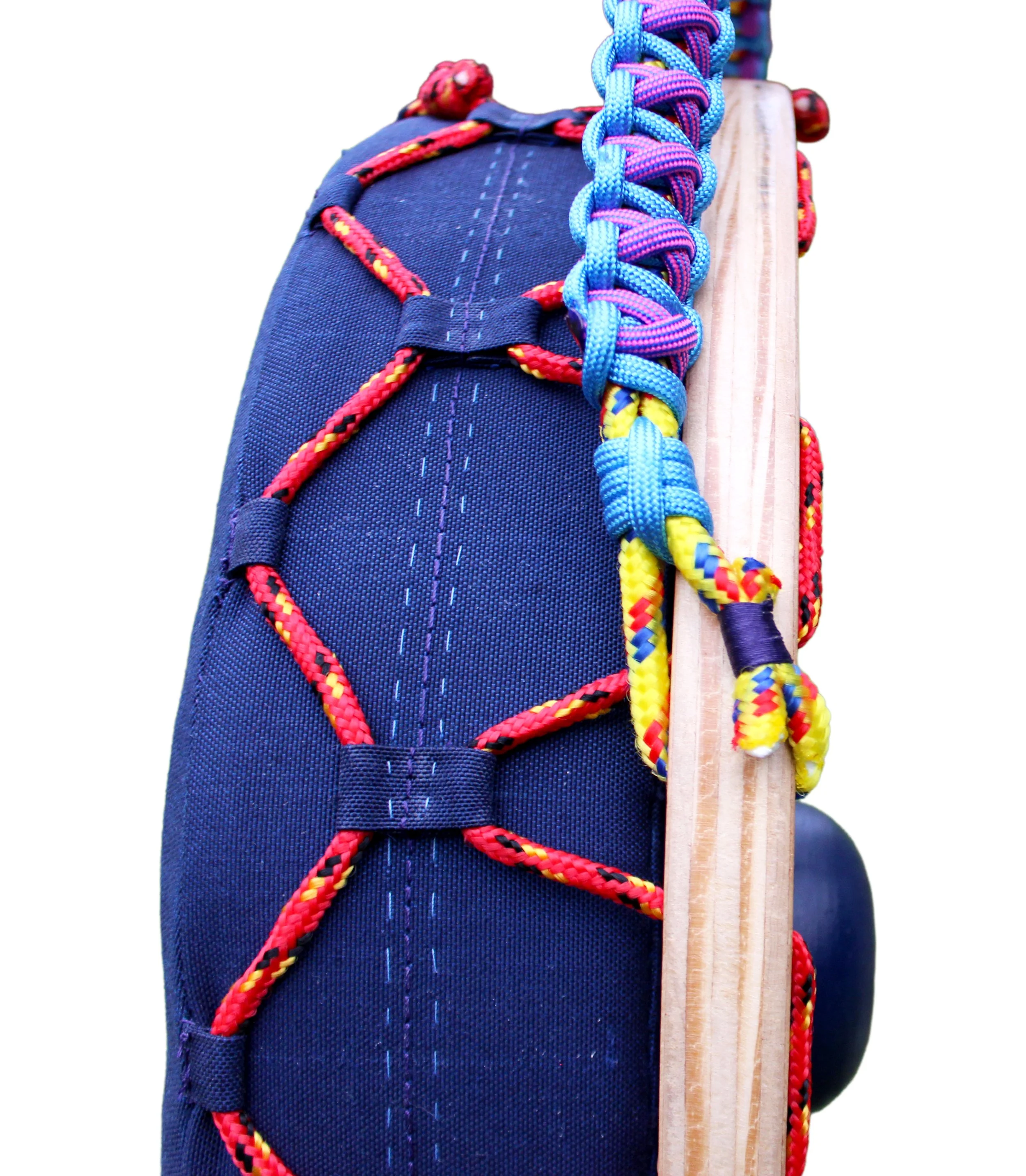

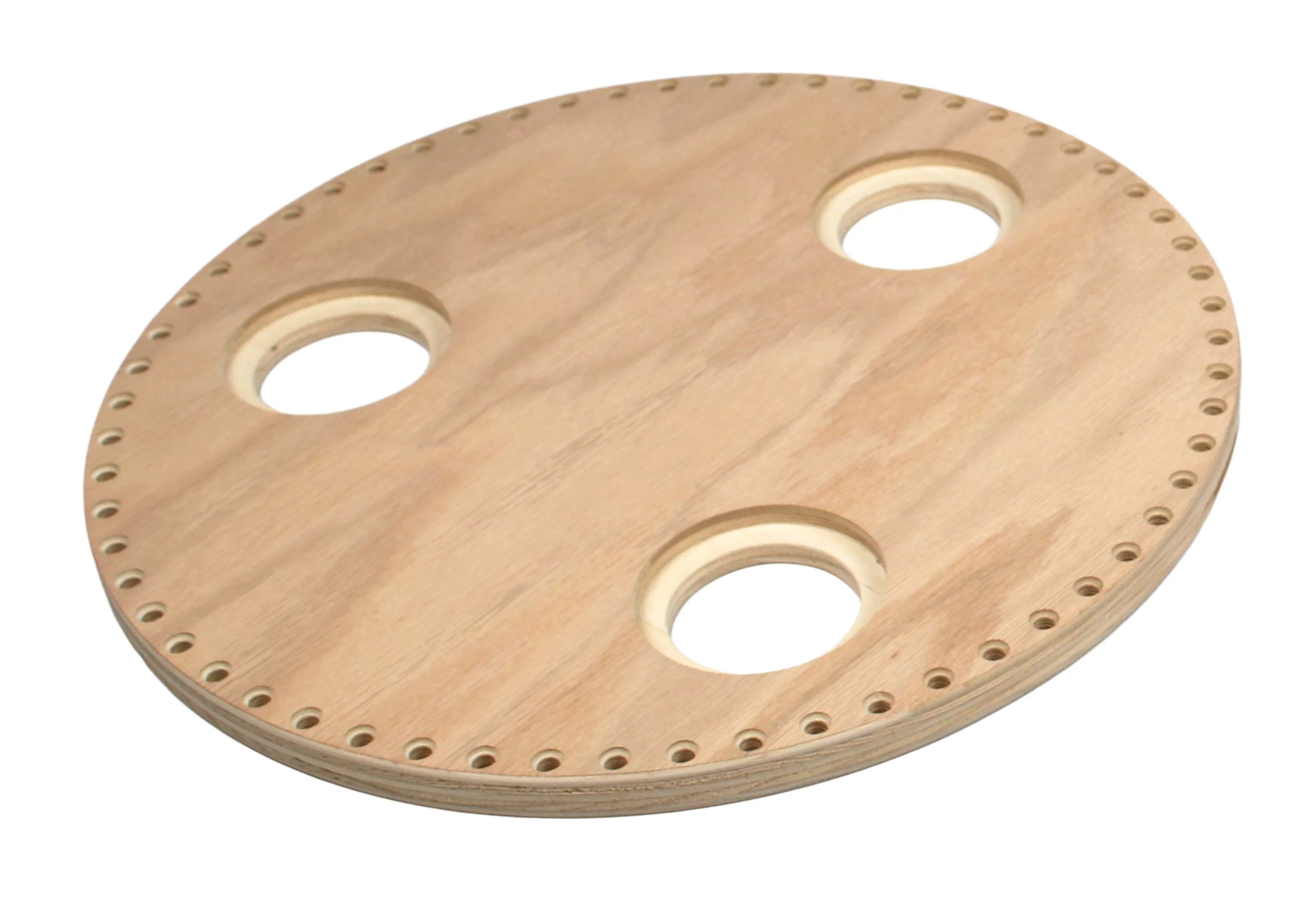

The water-proof canvas cushion is attached to a plywood base with lacing rope, three rubber feet underneath are durable and easy to clean, and the braided cord handle is stylish and comfortable to carry.
